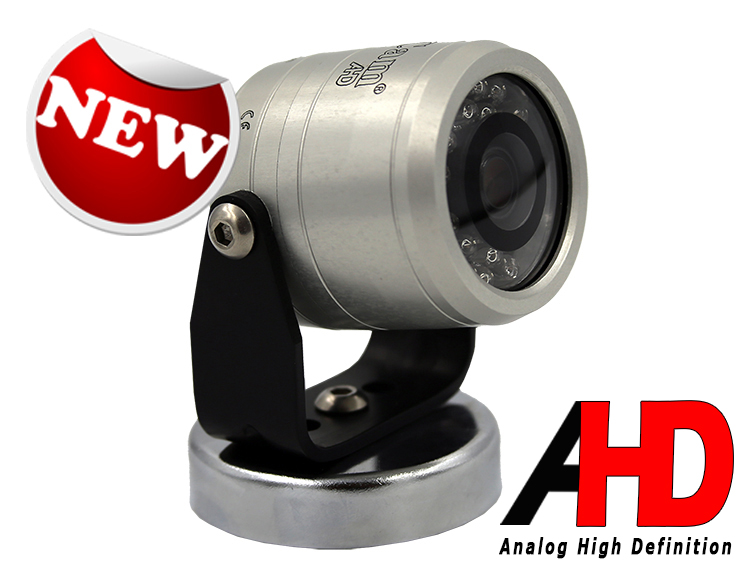

AHD EnduraCam Custom Lens Camera

AGCO Part number: DMEC-HC(insert lens size)

Comparable to Vendor Part Number:

Kits include choice of custom lens (6mm, 12mm or 16mm) EnduraCam AHD camera with mounting bracket and magnet.

  • (Qty 1) Custom lens AHD EnduraCam Camera
  • (Qty 1) 36in Camera Pigtail (DMAC-CT)

Camera

  • Image Sensor – 1 / 2.7 CMOS Sony
  • Programmability - 3 Way –Video System (NTSC or PAL),
  • Video Output Type (AHD or CVBS/Analog), Forward or Mirrored Programmable at factory level only
  • Video system – NTSC (Silver body) / PAL (Black body) – reprogrammable at factory
  • Resolution – AHD Set from factory to 1280x720 = 720P
  • Minimum Illumination 0.01 LUX @ F1.2
  • Environmental Rating – IP69
  • Camera Board Lens – Fixed Board Lens 3.6mm standard.
  • Also available in 6mm, 12mm & 16mm
  • Horizontal Field of View – 3.6mm @ 96°
  • Electronic Shutter – Auto / 1/25 (1/30) – 1/50,000 sec.
  • Construction – Anodized 6061 Aluminum Case
  • Scanning System – Progressive
  • Operating Temp - -45°F~150°F  (-42°C~66°C)
  • Connector Type - 5 pin Conxall/Switchcraft (AgCam/EnduraCam connector)
  • Back Light Compensation - Auto On/Off
  • Warranty – 3 Years
  • Connections - Video in (5 pin)/ 12v or AC power IN / Audio In
  • Camera Front Glass – Triple Hardening Auto Darkening Glass
  • Power - 12v 80mA (10-15 V Min/Max)
  • Camera Dimensions – 2.13in(H)x2.12in(L) (54.1mmx53.8mm)
