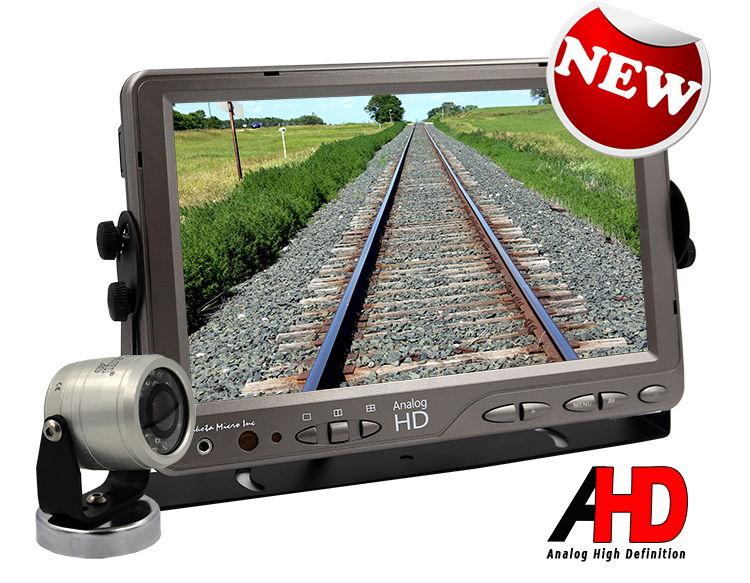

EnduraCam 9in AHD Single Camera

AGCO Part number: DMEC-H9C1

Comparable to Vendor Part Number:

9in LED AHD backlit monitor with four (4) camera inputs. Single camera kits include a 3.6mm AHD camera, a remote, and one (1) each of 20ft & 60ft power/video cables.

  • (Qty 1) 9in AHD LED Backlit Monitor - Stand & Remote (DM-H9)
  • (Qty 1) EnduraCam AHD Camera (DMEC-HC)
  • (Qty 1) Monitor Wire Harness (DMAC-MWH)
  • (Qty 1) 20ft Cable w/ Watertight Connectors (DMAC-EC20)
  • (Qty 1) 60ft Cable w/ Watertight Connectors (DMAC-EC60)
  • (Qty 1) 12v Cigarette Lighter Power Adaptor (DMAC-12v)
  • (Qty 1) AC Power Adaptor (DMAC-PA)



Camera

  • Image Sensor – 1 / 2.7 CMOS Sony
  • Programmability - 3 Way –Video System (NTSC or PAL), Video Output Type (AHD or CVBS/Analog), Forward or Mirrored Programmable at factory level only
  • Video system – NTSC (Silver body) / PAL (Black body) – reprogrammable at factory
  • Resolution – AHD Set from factory to 1280x720 = 720P
  • Minimum Illumination 0.01 LUX @ F1.2
  • Environmental Rating – IP69
  • Camera Board Lens – Fixed Board Lens 3.6mm standard. Also available in 6mm, 12mm & 16mm
  • Horizontal Field of View – 3.6mm @ 96°
  • Electronic Shutter – Auto / 1/25 (1/30) – 1/50,000 sec.
  • Construction – Anodized 6061 Aluminum Case
  • Scanning System – Progressive
  • Operating Temp - -45°F~150°F  (-42°C~66°C)
  • Connector Type - 5 pin Conxall/Switchcraft (AgCam/EnduraCam connector)
  • Back Light Compensation - Auto On/Off
  • Warranty – 3 Years
  • Connections - Video in (5 pin)/ 12v or AC power IN / Audio In
  • Camera Front Glass – Triple Hardening Auto Darkening Glass
  • Power - 12v 80mA (10-15 V Min/Max)
  • Camera Dimensions – 2.13in(H)x2.12in(L) (54.1mmx53.8mm)
  • Made in the USA
  • 16:9 aspect ratio so image doesn't need to be "stretched" to match monitors
  • Improved color and clarity over standard analog video cameras
    Increased ability to interpret shadowed areas, allowing for a larger viewing area
  • IP69 Anodized Aluminum camera body - Waterproof, shockproof, and suitable for nearly any use.
  • Built-in, high quality CCD camera with high performance IR's
  • IR has effective range of 75'+ in complete darkness, resists blooming and back reflection
  • Our exclusive camera body lens darkens in bright conditions and becomes completely transparent under low light conditions. This lens is also transparent of infrared light, allowing the LED's to penetrate even when it is darkened

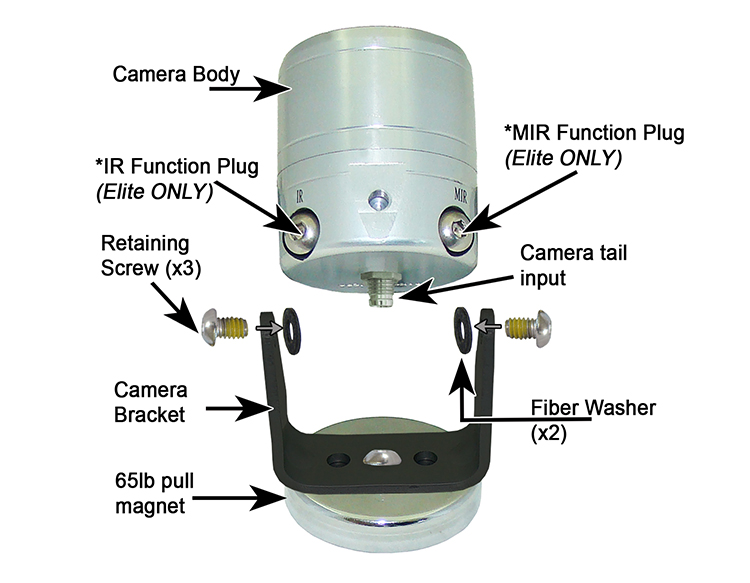

  • Solid billeted aluminum camera body features Dakota Micro's proprietary triple o-ring seal making it 100% waterproof even under direct high pressure spray and underwater use
  • Triple hardened glass lens resists scratching, scuffing and static buildup
  • Anodized camera body resists corrosion even in the harshest environments
  • Optional lenses available for a narrower viewing angle, giving the option to view subjects further away, 6mm lens 55°, 12mm lens offers a 26° horizontal field of view, while a 16mm lens offers a 20° field of view

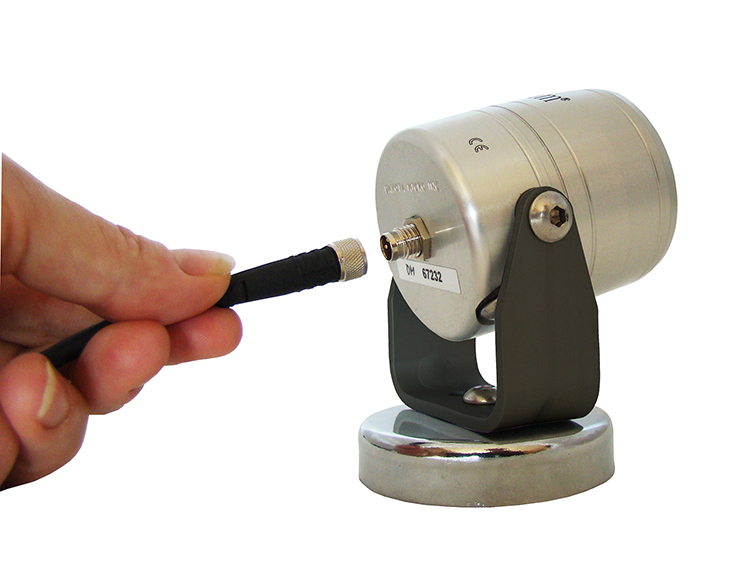

  • Removable/replaceable camera tail for easy replacement

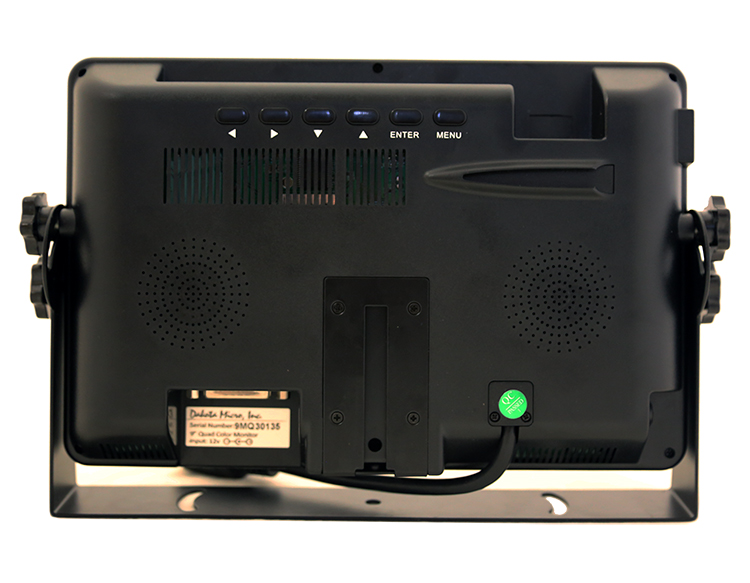

Monitors

  • Screen Size - 16:9 Digital Panel
  • Overall Size - 9in=6.1(H)x9.25(W)x1.44(D)in    7in=4.84(H)x7.04(W)x1.14(D)
  • Weight - 9in=547g    7in=396g
  • Power input - DC 10-32V
  • Color system - NTSC/PAL auto switch
  • Operating temp -  -30°F~130°F (-34°C~+54°C)
  • Brightness - 350cd/m2
  • Resolution - 1024(H)x600(V)
  • Contrast - 500:1
  • Viewing angle - L/R: 70°   Up: 50°   Down: 70°
  • Operating Voltage - Min 12v (Check monitor label for specific voltage range)
  • Lighting Source - LED Backlight
  • Environmental Rating – IP50
  • Video Output Port - RCAx1 Video Out  - Analog (CVBS) ONLY
  • Video Input Port - X4 AHD video input channels
  • Feature the latest in Analog HD technology
  • Advanced LCD technology allows you to clearly see your image from any angle
  • Mirror the view of any of your cameras for use as a backup camera
  • 2 Year Warranty
  • 4 Camera Inputs
  • Event triggers for each camera allow for triggered events to bring your camera to full view (IE: putting the vehicle in reverse)
  • Color, brightness, contrast and volume controls that allow compensation for use in different environments

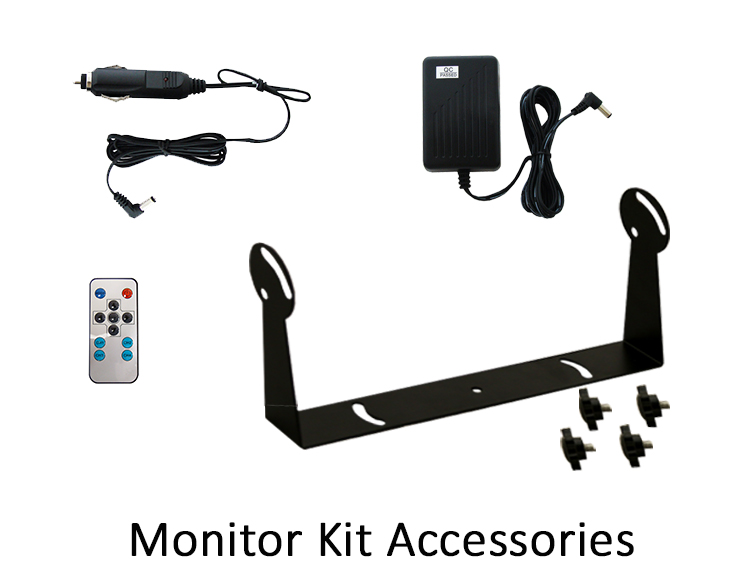

  • Remote control, sun shield, and metal U-bracket monitor stand included



Cables

  • Connector type - 5 pin Conxall/Switchcraft
  • Cable Type – Dual Core 26 AWG, Silicone Jacketed
  • RoHS compliant
  • Shielded
  • Strain Relief – Over molded
  • Watertight connections
  • Operating Temp - -45°F~150°F  (-42°C~66°C)
  • Max Recommended Pulling Tension - 10 lbs
  • Made in the USA
  • Silicone jacketing resists heat, cold, compression & crimping
  • Gold plated, corrosion resistant pins
  • ¼ twist lock keeps cables securely locked together
    Our durable power/video extension cables come in 10ft, 20ft, 30ft, 40ft,  50ft, 60ft & 80ft lengths and feature sturdy, watertight connectors
  • 1 Year Warranty
